As Colorfabb is claiming on his web site LW-PLA and LW-ASA are very light weight material for 3D print and thus allow to build light models.
| Parts | Weigh |
|---|---|
| WingtipL | 4.3 g |

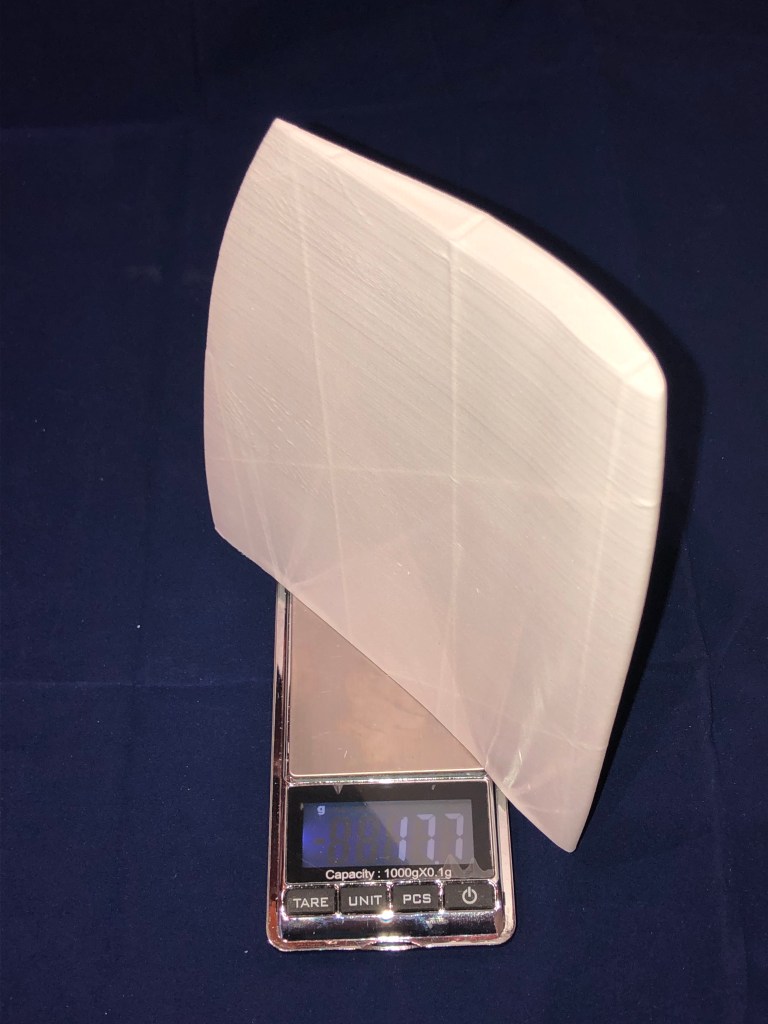

| WingL2 | 17.7 g |
| WingL1 | 22.4 g |
| WingcenterLFloater | 21.8 g |

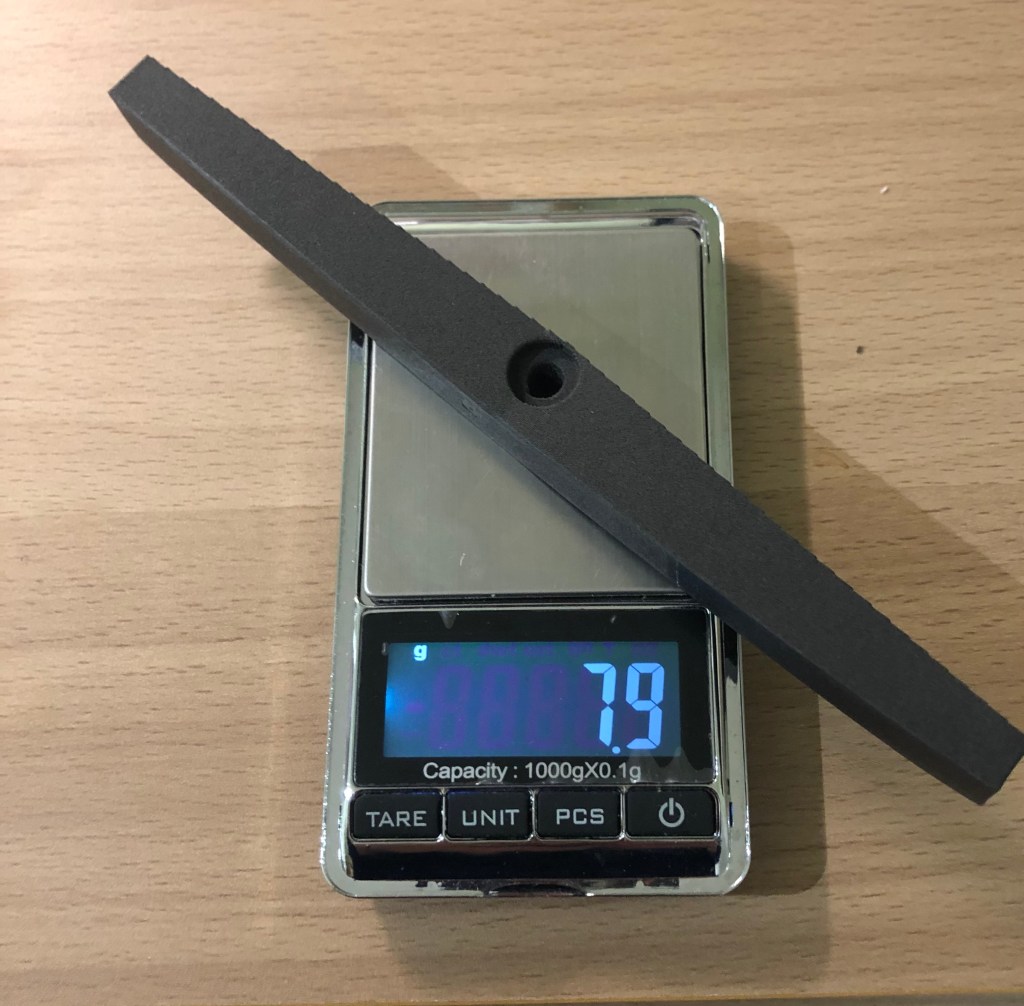

| Wingjoiner Floater | 7.9 g |
| Flachenaufnahme Floater | 13.4 g |

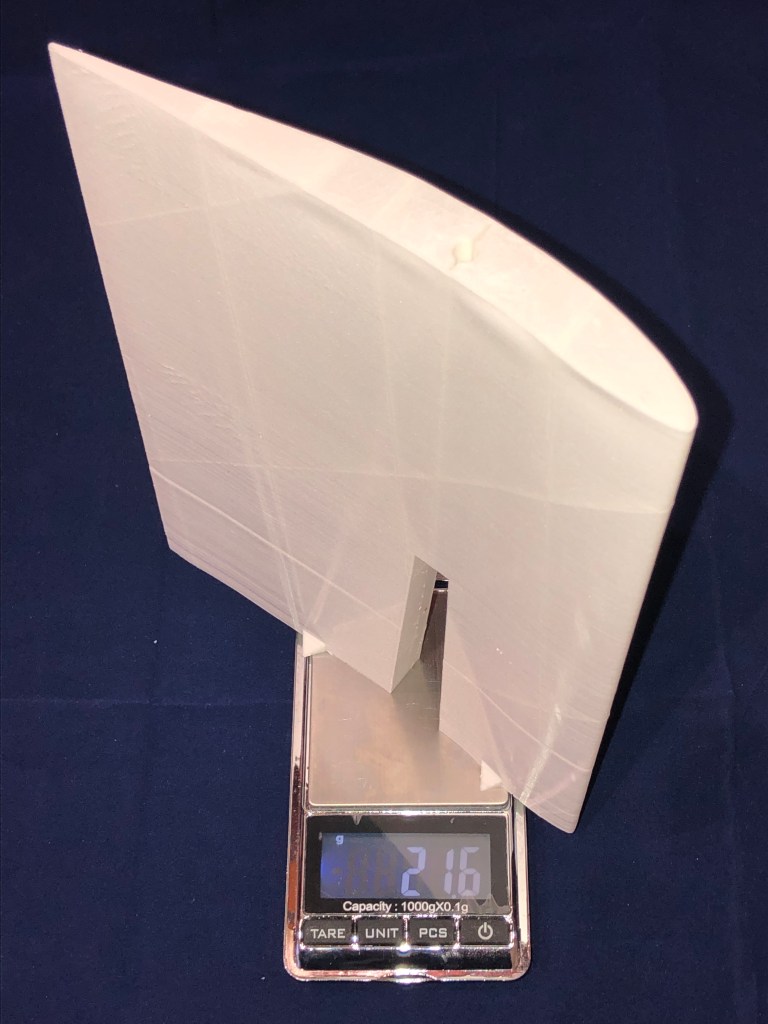

| WingcenterRFloater | 21.6 g |

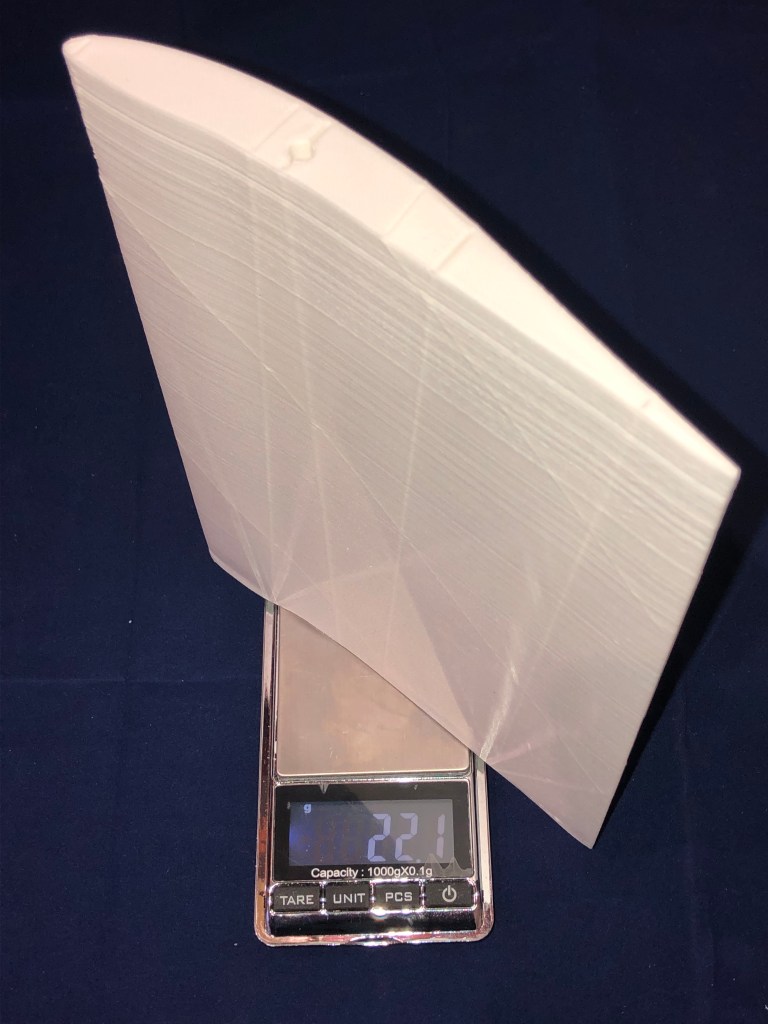

| WingR1 | 22.1 g |

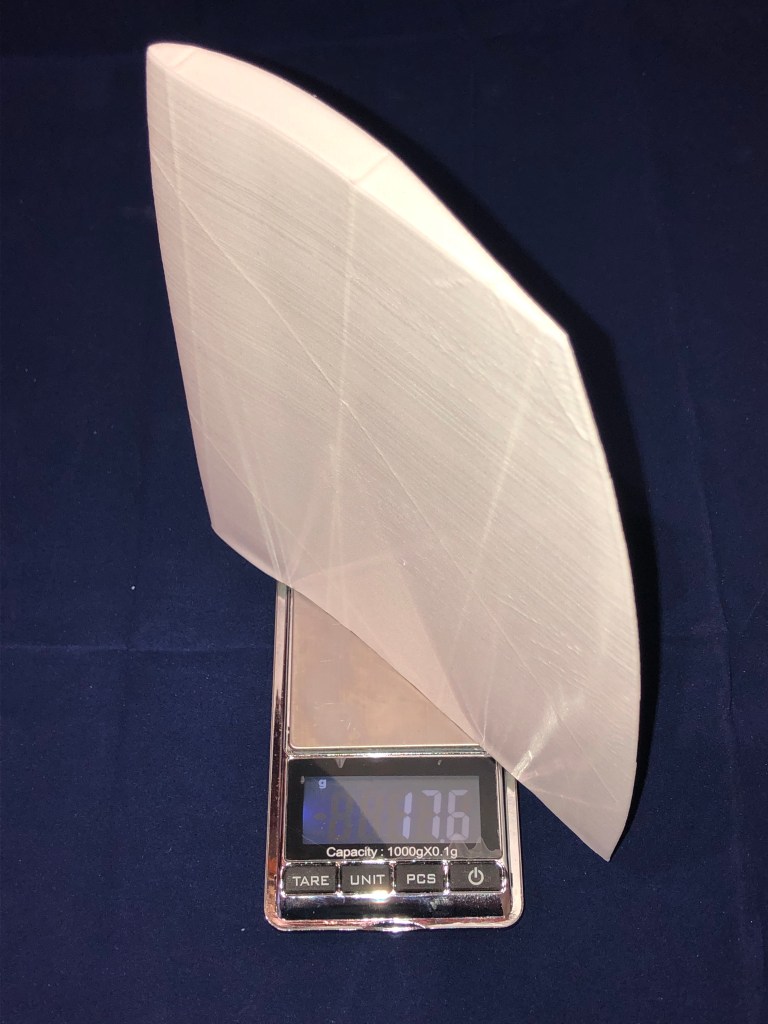

| WingR2 | 17.6 g |
| WingtipR | with WingtipL |
| Fus1 | 3.4 g |
| Motornose | 3.5 g |
| Motorspant | with Motornose |
| Fus2 | 28.5 g |
| Canopy | 11.4 g |
| Cockpit | with Canopy |
| Fus3 | 41.5 g |

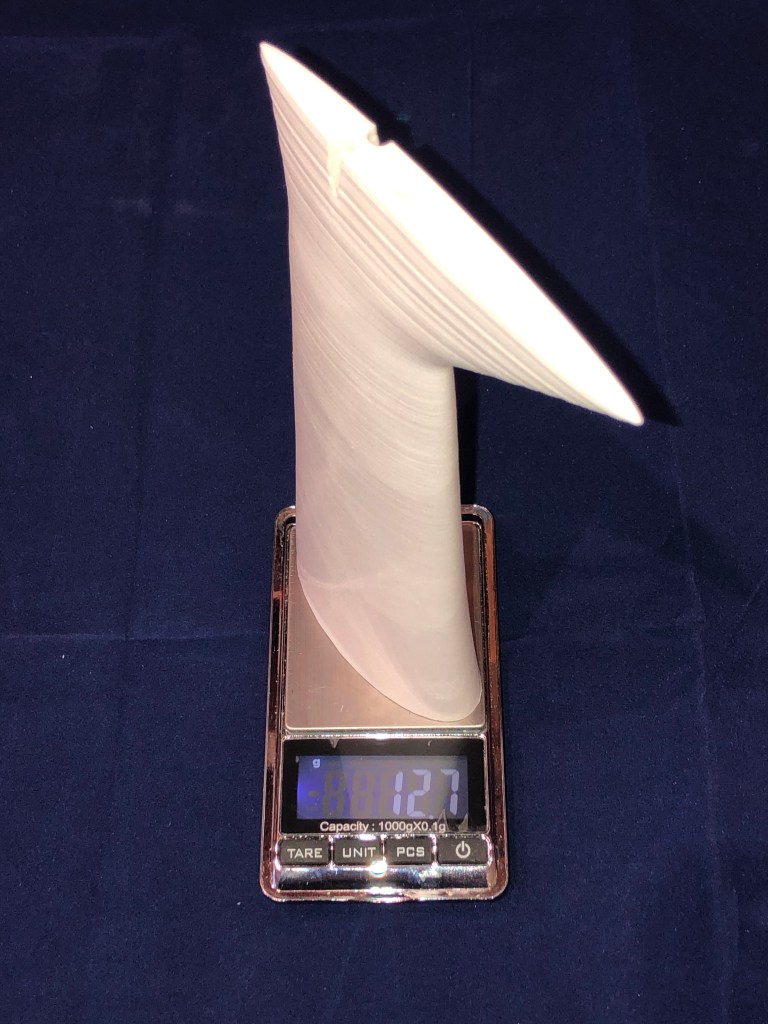

| Fus4 | 12.7 g |

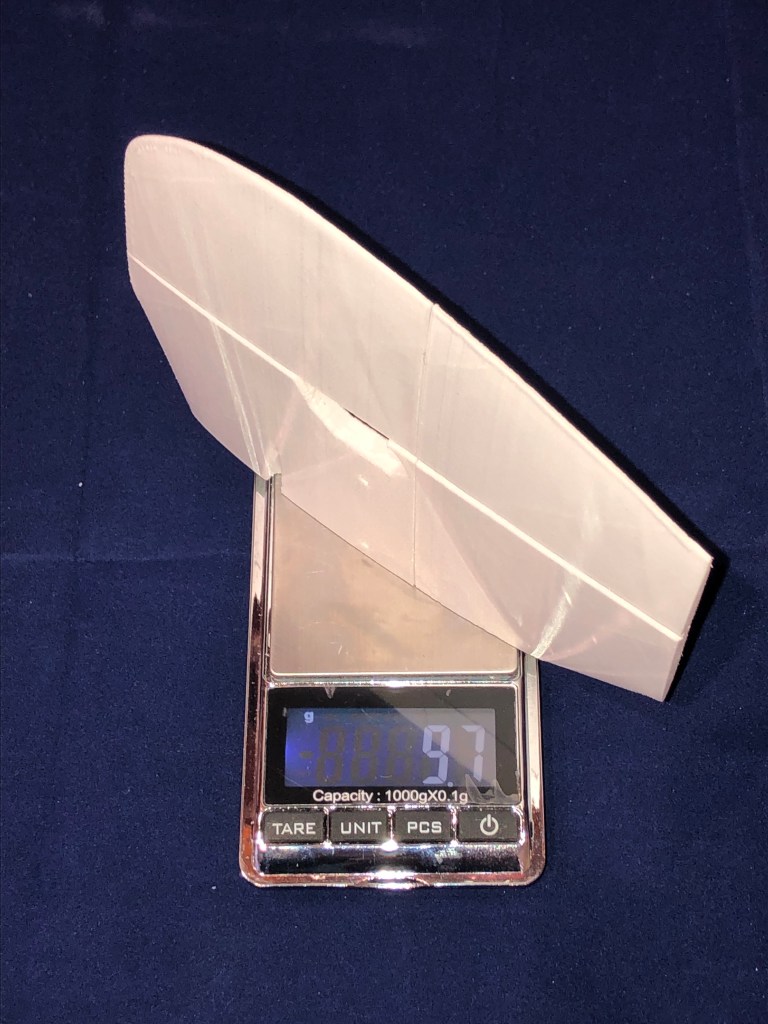

| VertStab | 9.7 g |
| HorStabtop | 0.8 g |

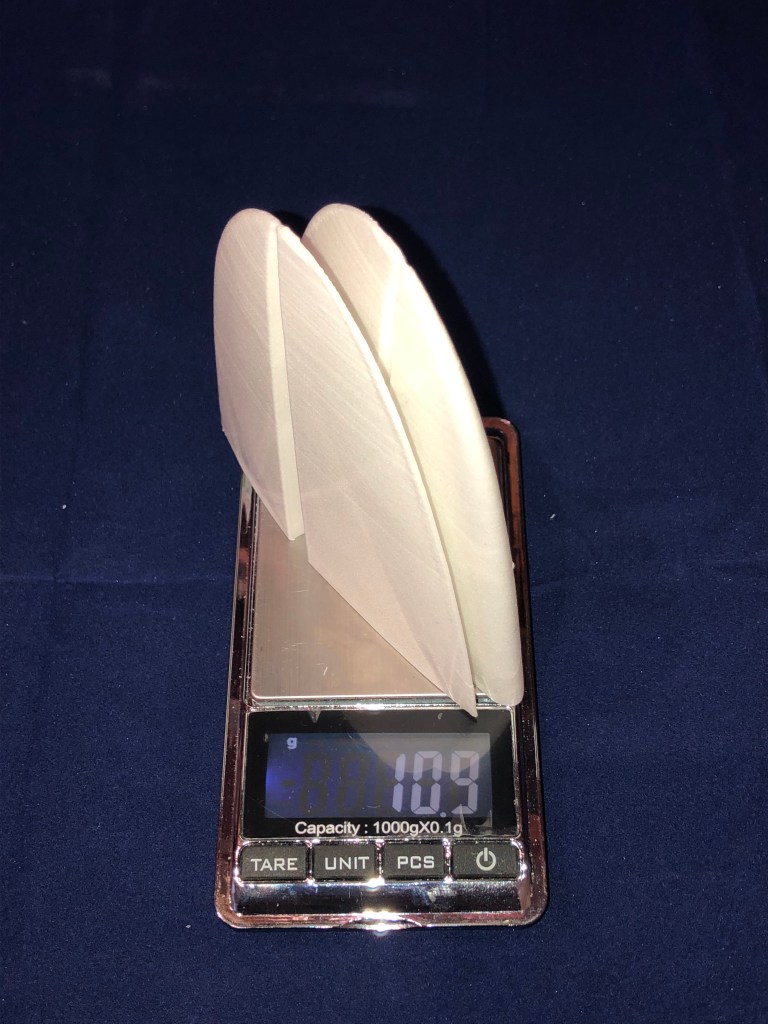

| HorStabL2 | 10.9 g |

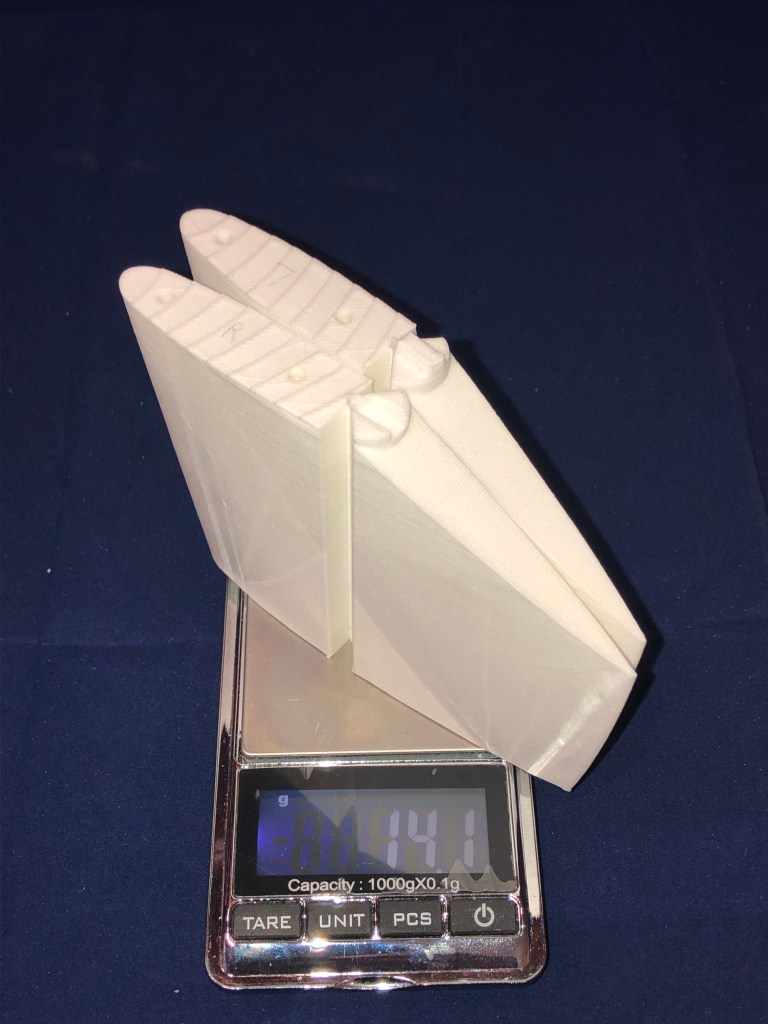

| HorStabL1 | 14.1 g |
| HorStabR1 | with HorStabL1 |
| HorStabR2 | with HorStabL2 |
The Sinbad will definitively be very light and i weighed each printed part.
Current total weight of all parts is 282 g. I will need to add 2 9g servos, one receiver, motor+esc and the 2S 300mAh lipo battery, and all links and rods with rudder and elevator. Final weight should be around 420/430g.
